VESSEL CLASS

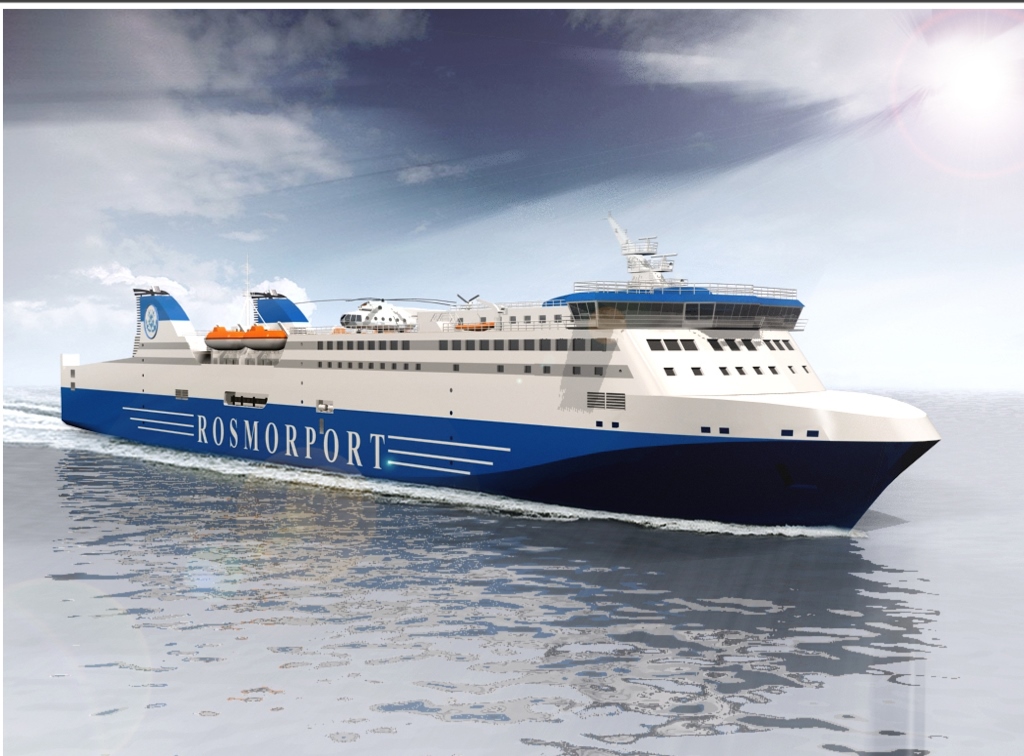

KM Arc4 AUT1-ICS OMBO ECO-S Ro-Ro Passenger Ship of Russian Maritime Register of Shipping
PURPOSE
All-year-round carriage of freight cars of 1520 mm track gauge including tanks, refrigerated cars and units between specially equipped ports on the line Ust-Luga-Baltiysk-ports of Germany; transportation of passengers, passenger cars and trucks, semi-trailers, other motor vehicles and crawler machines, as well as dangerous cargoes of 1…9 classes (during voyages without passengers).
CAPACITY
- Multipurpose freight cars L=14.73 m 100
- Multipurpose freight cars L=12.02 m 122
- Semi-trailers, pcs. 92
- Passenger cars, pcs. 292
- Passengers, pers. 332
PASSENGER ACCOMMODATION
Deluxe cabins, single-berth cabins of enhanced comfort, business and economy class double cabins, three-berth family cabins, economy class quadruple cabins. Provision is made for a lounge, restaurants, cafes, a dining-hall, a bar, a shop, gyms, promenade areas, saunas, a ship’s hospital, a dental room.
SHIPBOARD EQUIPMENT
- Stern door on the train deck, pcs. 1
- Side port-ramp fore and aft (SB) 2
- Between-deck ramp, pcs. 1
- Locomotive (Unilock type), pcs. 5
- Helipad 1
- Propeller, pcs. x type 2хCPP
- Bow/stern thruster, pcs. 2/2
- Anchor/mooring winch, pcs. 2
- Self-tensioning mooring winch, pcs. 4
Up-to-date radar system, shipboard local computer and information network with access to the high-speed Internet and satellite TV through the satellite communication system.
Special systems:
Automated heeling and trim system; cars pneumatic braking; railway signaling; train spaces ventilation; CCTV system for cargo spaces, sideports and areas of connection with bridge; strength and stability control.
DESIGN STAGE
Engineering design was developed in 2010
Main Features
- Length overall, m ab. 202.0
- Breadth moulded, m 27.0
- Design/summer draft, m 7.0/7.3
- Deadweight, t ab. 8470/9830
- Length of railway lines, m 1720
- Length of truck lines for rolling cargo, m 1640
- Speed, knots ab. 20
- Endurance in river/sea, days 12
- Quantity of berths, pcs. 66
Power plant
- Type - diesel geared unit
- Power, pcs. x kW 2x11600
- Heavy fuel oil
Chief Designer
S.A. Milavin
